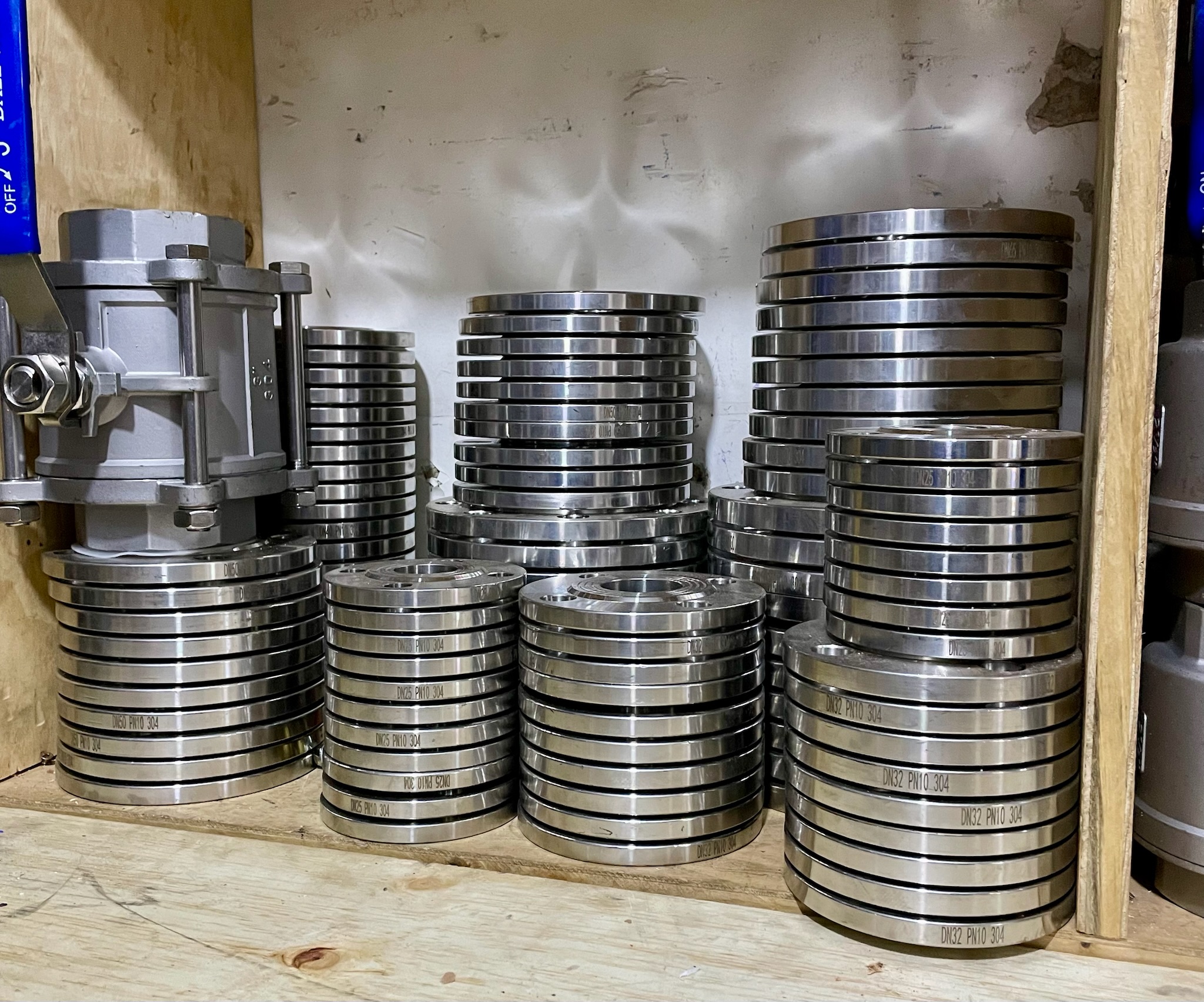

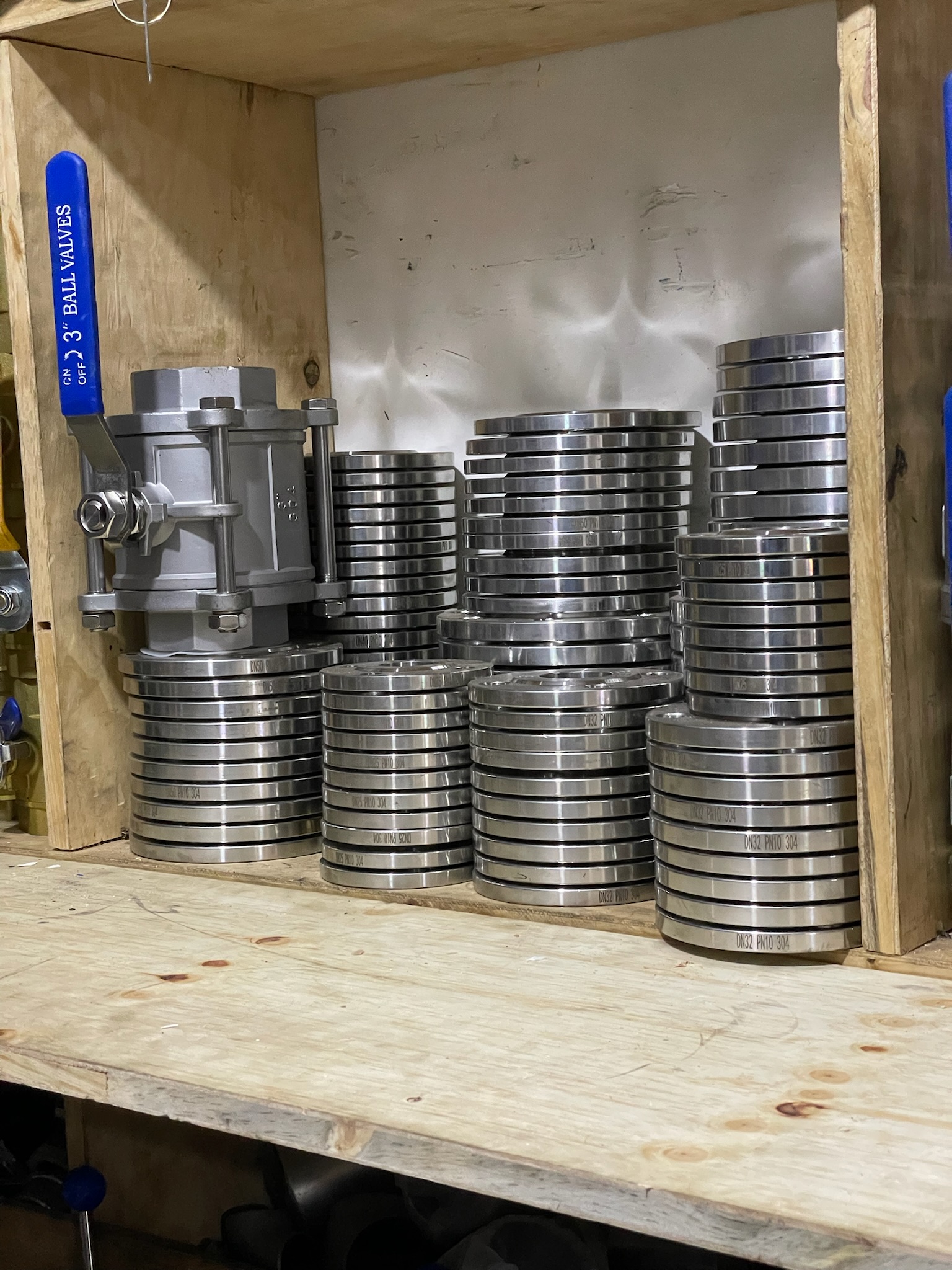

Stainless Steel Pipe Flange

Product Highlights

A Stainless Steel Pipe Flange is a component used to connect pipes, valves, pumps, and other equipment in a piping system. It allows for easy assembly and disassembly while ensuring a secure, leak-proof connection. Flanges are available in various types and standards to suit different industrial applications.

in stock

Description

A Stainless Steel Pipe Flange is a component used to connect pipes, valves, pumps, and other equipment in a piping system. It allows for easy assembly and disassembly while ensuring a secure, leak-proof connection. Flanges are available in various types and standards to suit different industrial applications.


Specifications:

1. Material Options:

  • SS304 (CF8) – General-purpose, corrosion-resistant, used in water and food industries

  • SS316 (CF8M) – Superior corrosion resistance, ideal for chemical and marine applications

  • SS321 / SS347 – High-temperature resistance

  • SS904L / Duplex 2205 – Extreme corrosion resistance for aggressive environments

2. Flange Types:

Weld Neck Flange (WN) – For high-pressure applications
Slip-On Flange (SO) – Easy installation, used in low-pressure systems
Blind Flange (BL) – Seals pipe ends, used for testing and maintenance
Socket Weld Flange (SW) – Ideal for small pipes in high-pressure systems
Threaded Flange (TH) – No welding required, used for small-diameter pipes
Lap Joint Flange (LJ) – Used with stub ends, allows for easy alignment
Orifice Flange – Used for flow measurement systems

3. Standards & Pressure Ratings:

  • JIS 5K, 10K, 16K, 20K (Japanese standard)

  • ANSI/ASME B16.5 (Class 150, 300, 600, 900, 1500, 2500)

  • DIN (PN6, PN10, PN16, PN25, PN40, PN100, etc.)

  • BS4504 (PN10, PN16, PN25, PN40)

4. Sizes Available:

  • DN15 (1/2″) to DN2000 (80″)

  • Custom sizes available based on requirement

5. Surface Finish:

  • Smooth Face (SF)

  • Raised Face (RF)

  • Flat Face (FF)

  • Ring Type Joint (RTJ)

6. Temperature & Pressure Resistance:

  • Temperature Range: -100°C to 600°C (depends on grade)

  • Pressure Rating: 150 PSI – 2500 PSI
