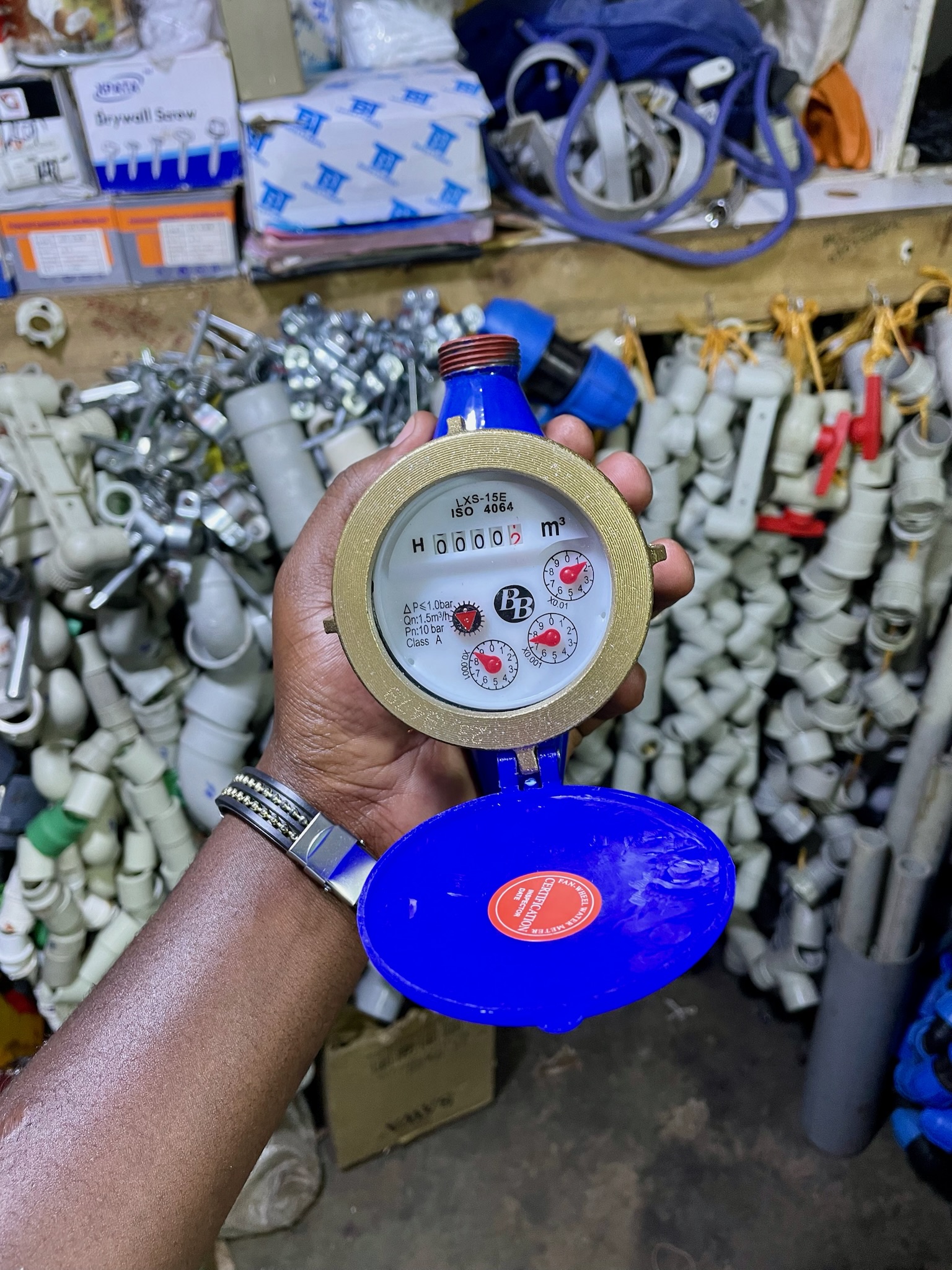

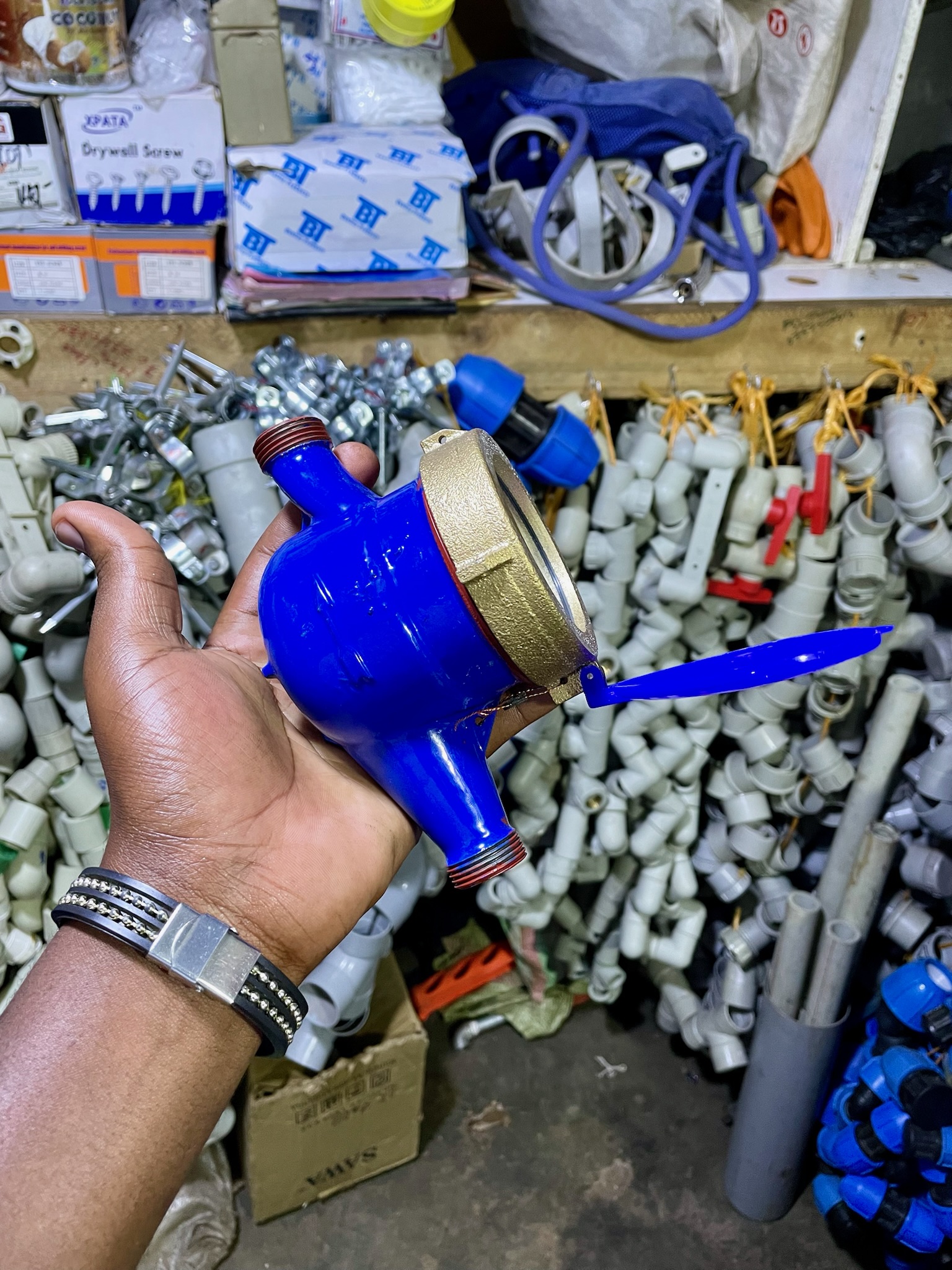

Multi-Jet Mechanical Water Meter with Brass body

Description

A Multi-Jet Mechanical Water Meter with a brass body is a durable and accurate metering device used to measure water consumption in residential, commercial, and industrial applications. It operates using multiple jets of water directed towards an impeller, which rotates proportionally to the water flow, ensuring precise readings.

Specifications:

1. Material:

   • Body: Brass (Corrosion-resistant, high durability)

   • Internals: Stainless steel or polymer components

   • Seals: EPDM or NBR rubber for leak prevention

2. Measuring Mechanism:

   • Multi-jet system for consistent accuracy

   • Dry dial or wet dial options

   • Magnetic drive to reduce wear and tear

3. Size Range:

   • DN15 (1/2”) to DN50 (2”)

   • Larger sizes available for industrial applications

4. Accuracy Class:

   • Class B or Class C (ISO 4064-1 Standard)

   • High accuracy in measuring low and high water flow rates

5. Operating Pressure:

   • Typically PN16 (16 bar)

   • Optional higher pressure ratings available

6. Temperature Range:

   • Cold Water Meter: 0°C – 40°C

   • Hot Water Meter: 0°C – 90°C (Specialized models available)

7. Reading Display:

   • Analog (Mechanical) Register

   • 360° Rotatable dial for easy reading

   • Optional pulse output for remote monitoring

8. Standards & Certifications:

   • ISO 4064 / OIML R49 / MID 2004/22/EC compliance

   • WRAS / NSF / CE / RoHS certifications available depending on the model
